How does PAC Control determine if a strategy download is needed?

PAC Project
1

We are trying to find a good method of making sure our file management system keeps our project strategies updated across many computers. What file does the controller use to determine if the strategy being used to go into debug is the same that is in the controller and whether it needs to be downloaded or not. On our development computers we want to compare the local copy with a master copy.

We have tested comparing .idb, .crf, .crn, and .crn1 files between machines running the same strategy but none are reliable — .idb changes on debug, .crf and .crn produce different binaries on recompile, and .crn1 never changes between revisions. Is the CRC mentioned in the Command Reference (Calculate/Retrieve Strategy CRC) computed from a specific file, or is there another way to compare two copies of the same strategy?

2

This is a good question since it can be difficult to maintain version control across multiple PCs.

You’ve tried comparing several files, but the key one is the .crf file. However, as you’ve noticed, simply doing a standard file comparison or CRC of the .crf files won’t work because every time the file is saved, the internal TIMESTAMP changes, which alters the file’s CRC even if the logic hasn’t changed.

Instead, use the current version of TermCL, a command-line utility that installs automatically with PAC Project. Typically, it is located here:
C:\Program Files (x86)\Opto22\PAC Project 10.6

Here is how you can use it to get a reliable CRC. Open a standard Windows Command Prompt (DOS prompt).

Navigate to your PAC Project installation directory. Typically:
C:\Program Files (x86)\Opto22\PAC Project 10.6

Note: Your version number folder may vary slightly. However, versions of TermCL prior to R10.6b will not contain the -gencrc option.

Run the following command:
TermCL -gencrc
(Replace with the full path and filename of your .crf file). For example:

image870Ă—307 10.2 KB

When you run the -gencrc command, TermCL builds a CRC based only on the code portion of the file. It omits the lines beginning with DATESTAMP, TIMESTAMP, and CRCSTAMP. This ensures that innocuous saves don’t change the CRC. Only logic changes will.

Because the .crf is just a standard text file, you can open it in any text editor and scroll to the very bottom to see the current CRC on the CRCSTAMP line. Here are the key lines towards the end of my .crf file:
: DATESTAMP ." 08/26/26 " ;
: TIMESTAMP ." 13:11:33 " ;
: CRCSTAMP ." 3B991A8E0D6E7C3492D0AEF6D873FD23 " ;

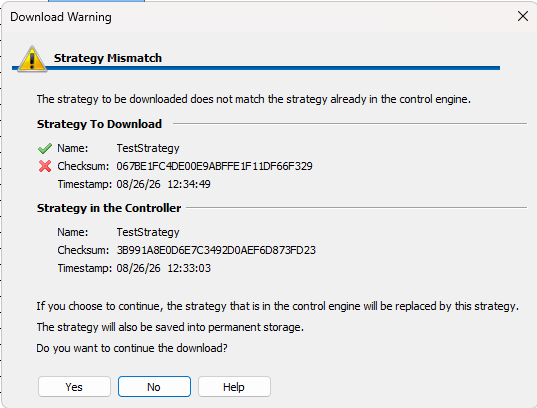

When you enter Debug mode, PAC Control compares the CRC in your local .crf file to the CRC in the controller. If they don’t match, you get the Download Warning dialog, which explicitly displays both CRCs side-by-side:

image537Ă—408 13.9 KB

Please note that the CRC is only generated upon compilation (whether you trigger it manually or PAC Control triggers it automatically before a download). It is not generated just by saving the strategy or performing an online download.

So, it is possible for a strategy file to have uncompiled/online changes that aren’t yet reflected in the CRCSTAMP. Always make sure the strategy has been compiled before comparing the CRCs.

In the case of online changes, the file CRC is not updated until Online mode is exited, Configure mode is entered, and then transitioned to Debug mode to perform a full download.

Hope this helps you get your file management system in order.

Josh Morris
Opto 22 Product Support Group

4 Likes
3

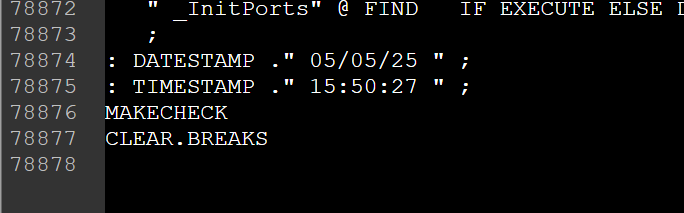

Thanks Josh. Is this the equivalent for Opto Control projects in the .crn file?

image684Ă—213 12.6 KB

4

In OptoControl, the strategy CRC is not used to determine if a download is required. This improvement was made later in PAC Control. Instead, OptoControl uses the datestamp and timestamp of the strategy. As you suspected, it is stored at the end of the .crn file. This datestamp/timestamp is compared to what’s stored in the controller to determine if a download is required.
